Project Brief...
. . .

Ideate and design a power tool of choice (automotive, medical or construction)

Build clay mock-ups of the design, and further refine it through critique

Use orthographics of the mock-up to build a 3D prototype out of polyurethane foam

Priming, painting, and applying finishing techniques using model making skills

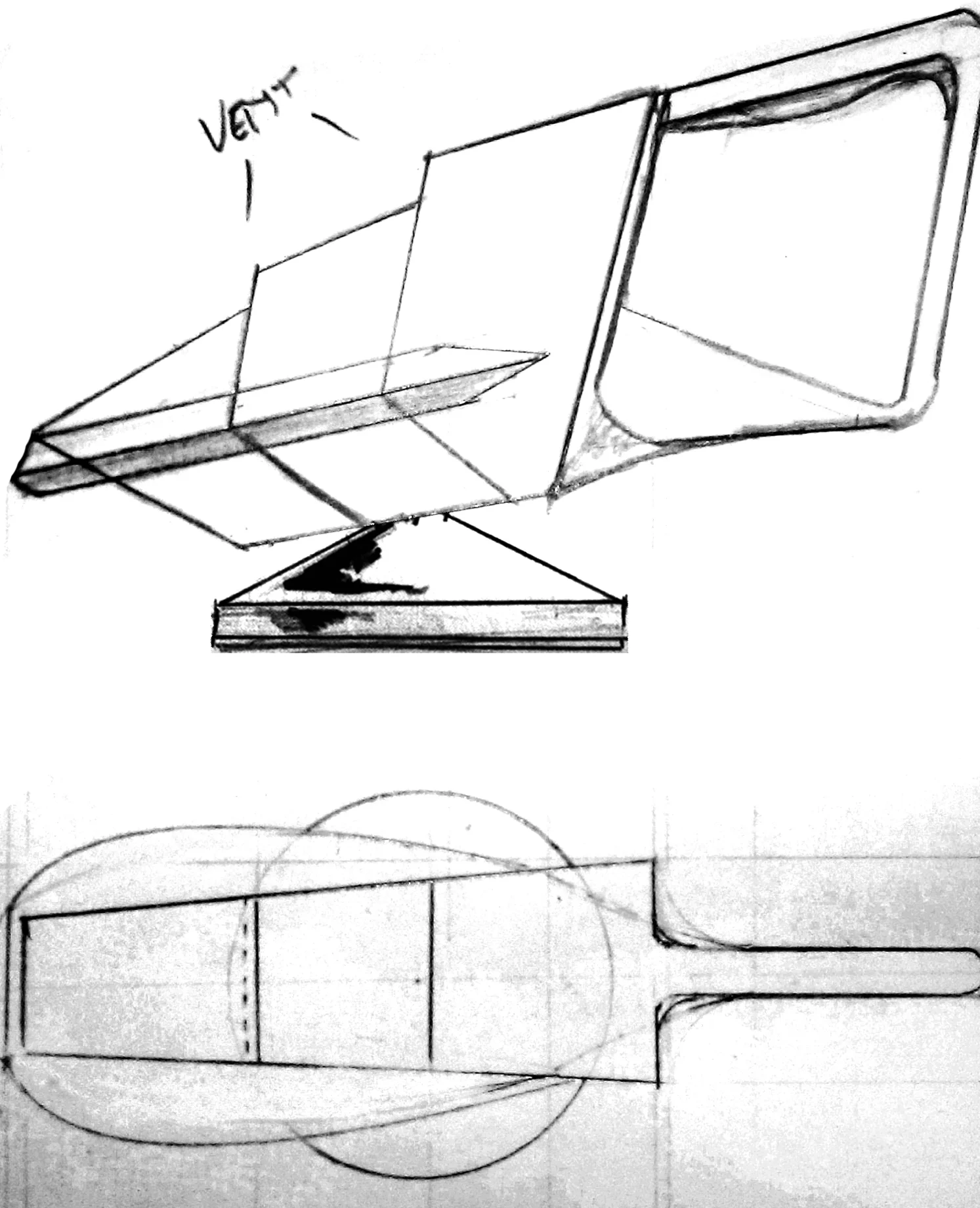

Ideation Thumbnails

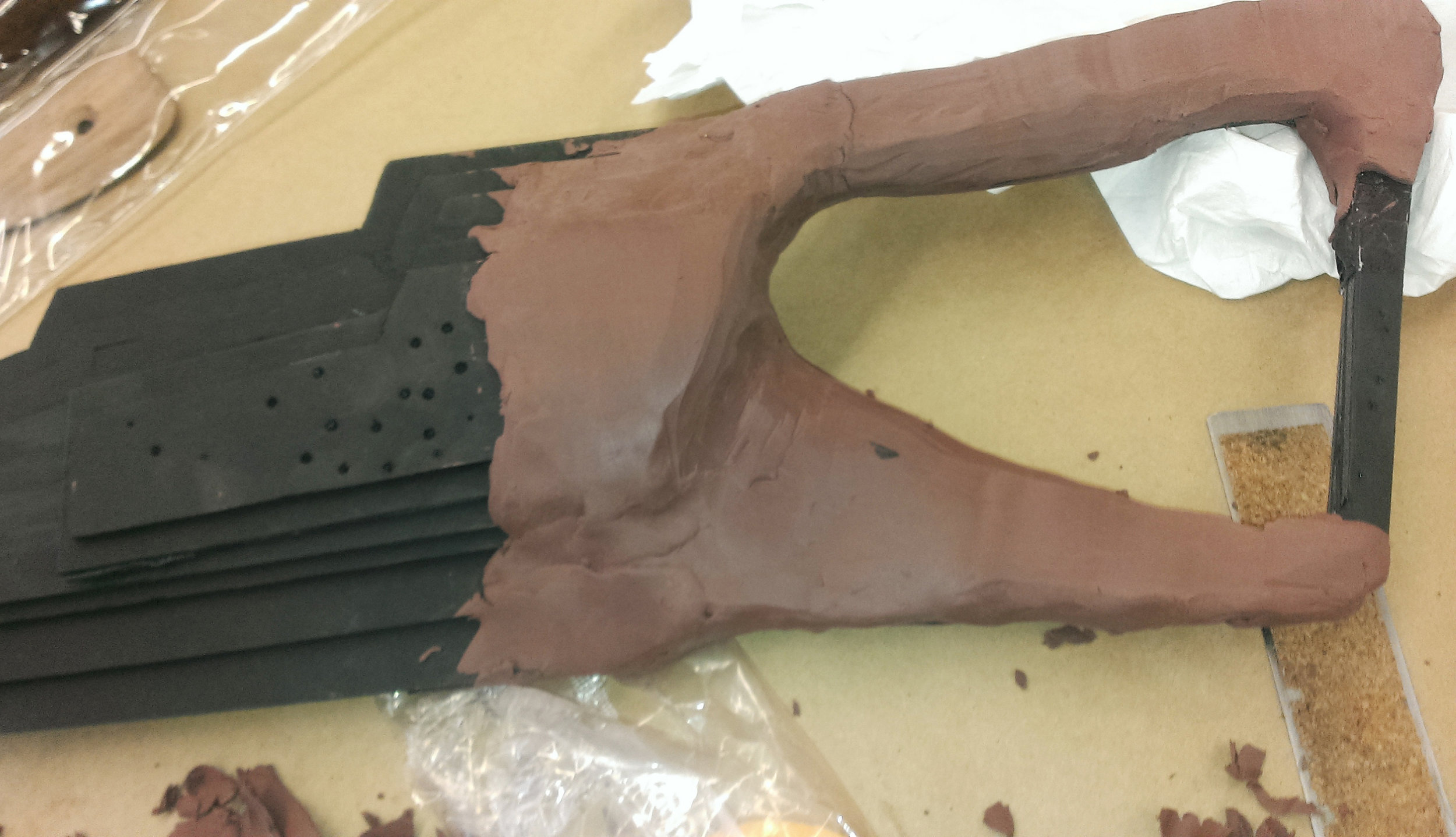

Clay Mockups

The final design was refined through critique suggestions


Orthographic Views

Orthographic views are used to carve accurately into polyurethane foam


Final Prototype

The final form is prepared with primer then painted and finished to simulate rubber and glossy textures


Poster
